Wire Mesh Cable Tray
WM wire mesh cable trays are ideal for commercial and data center cable management, providing a flexible way to adjust your cable trays to suit your job site applications. It can easily modify the horizontal and vertical transition connection accessories, and there are a variety of materials and surface treatments to choose from to meet environmental and aesthetic requirements.
2. horizontal elbow: standard angle comes in 30, 45, 60 and 90 degress, standard radius comes 300,600 and 900mm.>
3. horizontal tee: standard radius comes 300,600 and 900mm.
4. horizontal cross: standard radius comes 300,600 and 900mm.
5. vertical tee: standard radius comes 300,600 and 900mm.
6. reducer: left reducer as shown, right and straight reducer supplied on request.
7. internal riser: standard radius comes 300,600 and 900mm.
8. external riser: standard radius comes 300,600 and 900mm.
9. combination riser part
10. splice connector
11. horizontal splice connector
12. vertical splice connector
13. reduction splice connector
14. straight flat cover
15. heavy duty cover clamp
16. universal cover clamp
17.flat cover for horizontal elbow
18. barrier strip
19. blind end
20. drop out plate
Different tray heights to give more choice for loading space availability. WM wire mesh cable tray comes in standard heights of 50 mm, 100 mm, and 150 mm. Other heights are available on request.

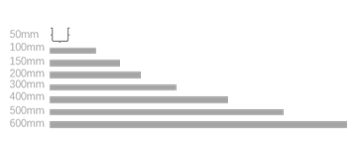

Different tray widths to give more choice for loading space availability. WM wire mesh cable tray comes in standard widths of 50, 100, 150, 200, 300, 400, 500 and 600 mm. Other widths are available on request.
Cureved Side Wire
The curved edge wire design greatly increases the support strength and has the aesthetics design.
